Infrastructure Documentation

Prerequisites

Before you begin, ensure you have the following installed on your system:

• Docker: Version 20.10 or higher (Install Docker)
• Docker Compose: Version 2.0 or higher (usually included with Docker Desktop)
• Git: For cloning the repository (Install Git)

To verify your installations, run:

docker --version
docker compose version
git --version

Getting Started

1. Clone the Repository

Clone the repository from GitLab:

git clone git@gitlab.com:ikdoeict/vakken/opo_agile_team_project/projecten/2526/2526_atp_dengue/Dengue-Dashboard.git
cd Dengue-Dashboard

2. Environment Configuration

Copy the example environment file and configure it:

# Copy the example environment file
copy .env.example .env

Open the .env file and review the configuration. The default values should work for local development, but you can customize them as needed:

• Database credentials: Default credentials are set for local development
• Admin account: Default admin credentials (change in production!)
• URLs: Frontend and backend URLs (default: frontend on port 5173, backend on port 5000)

Important: For production deployments, make sure to:

• Change the SECRET_KEY to a secure random string
• Update the ADMIN_PASSWORD to a strong password
• Update database credentials (DB_PASSWORD, MARIADB_PASSWORD, MARIADB_ROOT_PASSWORD)
• Configure proper email settings for the SMTP server

3. Start the Application

Build and start all services using Docker Compose:

docker compose up --build

This command will:

• Build the frontend and backend Docker images
• Start the MariaDB database
• Start the SMTP server (for email testing)
• Start the Adminer database management tool
• Initialize the database with the required schema

this wil not run the tests

First-time setup: The first build may take several minutes as Docker downloads base images and installs dependencies.

4. Access the Application

Once all services are running, you can access:

• Frontend: http://localhost:5173
• Backend API: http://localhost:5000
• Adminer: http://localhost:8080
  • System: MySQL
  • Server: dengue_db
  • Username: dengue_user
  • Password: Azerty123
  • Database: dev_db
• SMTP4Dev: http://localhost:8081

5. Default Login Credentials

The default admin account credentials are:

• Email: admin@example.com
• Password: Azerty123

⚠️ Important: Change these credentials immediately in production environments!

6. Run the testing suite

this wil run the front/backend tests, and the end-to-end tests

docker compose --profile testing up --build

Deployment Workflow

This project uses a GitLab CI/CD pipeline with three main branches for deployment: feature/*, staging, and main. Each branch triggers different CI behaviors to ensure safe and controlled deployments.

Branch Strategy

Development Branch (development)

• Purpose: A holding/integration branch where completed feature branches are merged and tested together before promoting to staging.
• Workflow:
  • Developers work on feature/* branches and open merge requests into development when a feature is ready for integration.
  • development runs CI (integration tests, broader test suites and builds) to validate that combined features work together.
  • When the development state is stable and reviewed, merge development into staging to perform QA and stakeholder demos.
  • After successful staging validation, merge staging into production (or main) and use the manual approval step to deploy.
• Use Case: This keeps feature work isolated while letting the team validate combined changes before exposing them in staging.

Feature Branches (feature/*)

• Purpose: Development and testing
• CI Behavior:
  • Runs linting and tests
  • Builds Docker containers (to catch build errors early)
  • Does NOT push containers to registry
  • Does NOT deploy to any environment
• Use Case: Validate your changes compile and pass tests before merging

Staging Branch (staging)

• Purpose: Pre-production testing environment
• CI Behavior:
  • Runs linting and tests
  • Builds and pushes containers with :staging tag
  • Automatically deploys to dengue-dashboard-staging namespace
• Use Case: Integration testing, stakeholder demos, QA validation

Production Branch (production )

• Purpose: Live production environment
• CI Behavior:
  • Runs linting and tests
  • Builds and pushes containers with :production AND semantic version tags (e.g., :v1.2.3)
  • Manual approval required before deployment
  • Deploys to dengue-dashboard-prod namespace after approval
• Use Case: Stable, production-ready releases

Deployment Flow Examples

1. Develop a new feature

# Create feature branch from development
git checkout development
git pull origin development
git checkout -b feature/123-new-feature

# Make changes, commit regularly
git add .
git commit -m "Add new feature"
git push origin feature/123-new-feature

# CI will build containers but NOT push or deploy
# Check pipeline in GitLab to ensure builds succeed

2. Deploy to staging

# Merge feature to staging branch
git checkout staging
git pull origin staging
git merge feature/123-new-feature

# Push to trigger staging deployment
git push origin staging

# CI will:
# - Build containers
# - Push with :staging tag
# - Automatically deploy to staging environment
# - Accessible at http://10.129.80.13:30080

Quick Commands

# Check current branch and status
git status
git branch

Docker Compose

Docker Compose Services

Service	Profile	Ports	Purpose	Dependencies
frontend-lint	development	-	Lint frontend code	-
frontend-test	testing	51261	Run frontend unit tests	backend
frontend-cypress	testing	-	Run Cypress e2e tests	frontend, backend-e2e
frontend	development, production	5173	Serve frontend app	smtp
backend-lint	development	-	Lint backend code	-
backend-test	testing	-	Run backend tests	dengue_db
backend	development, production	5000	Serve backend API	smtp, dengue_db
dengue_db	-	3307	MariaDB database	-
dengue_db_test	testing	3308	Test database	-
backend-e2e	testing	5001	Backend for e2e tests	smtp, dengue_db_test
smtp	-	8081, 2525	Email testing server	-
adminer	-	8080	Database management UI	-

profiles

Docker Compose uses profiles to group services for different environments and purposes. The main profiles are:

Development Profile

• Purpose: Local development environment with hot-reloading, linting, and development servers.
• Services: frontend-lint, frontend, backend-lint, backend, smtp, dengue_db, adminer.
• Usage: Run with docker compose --profile development up to start development servers and tools.
• Key Features: Source code mounting for live changes, development builds, database persistence.

Testing Profile

• Purpose: Automated testing environment replicating CI, including unit tests, e2e tests, and database setup.
• Services: frontend-test, frontend-cypress, backend-test, dengue_db_test, backend-e2e, smtp.
• Usage: Run with docker compose --profile testing up --build to execute the full test suite.
• Key Features: Isolated test database, report generation, Cypress e2e testing with network mode host.

Production Profile

• Purpose: Production-like setup for local testing of production builds.
• Services: frontend, backend, smtp, dengue_db, adminer.
• Usage: Run with docker compose --profile production up --build for production builds.
• Key Features: Optimized builds, health checks, production configurations.

What docker compose up --build does

This command will:

• Build the frontend and backend Docker images
• Start the MariaDB database
• Start the SMTP server (for email testing)
• Start the Adminer database management tool
• Initialize the database with the required schema

Optimizing Build Performance

Speed up frontend builds with pnpm caching. The Dockerfile uses BuildKit cache mounts to persist the pnpm store between builds.

Automatic caching (recommended):

• The frontend/Dockerfile includes cache mounts for the pnpm store
• Dependencies are cached automatically on subsequent builds

Dockerfile caching example:

RUN --mount=type=cache,id=pnpm-store,target=/app/.pnpm-store \
  pnpm install --frozen-lockfile

Important: Commit pnpm-lock.yaml to the repo to ensure deterministic builds and effective caching.

Docker Configuration

Frontend Dockerfile

Stages

Stage	Base Image	Purpose	Key Actions	Exposed Ports
builder	node:25-alpine	Base setup for all stages	Install pnpm, dependencies, copy source	-
lint	builder	Lint frontend code	Run linting commands	-
test	builder	Run unit tests	Execute Vitest unit tests	51204
cypress	cypress/included:latest	Run e2e tests	Execute Cypress tests	-
development	builder	Development server	Start Vite dev server	5173
build	builder	Build production assets	Build app with Vite	-
production	nginx:alpine	Serve production build	Serve static files with nginx	80

Backend Dockerfile

Stages

Stage	Base Image	Purpose	Key Actions	Exposed Ports
base	python:3.13-slim	Base setup for all stages	Install system deps, Python packages, copy entrypoint	-
lint	base	Lint backend code	Run Ruff linting with fixes	-
development	base	Development server	Run Flask app in development mode	-
test	lint	Run backend tests	Execute pytest with coverage	-
production	base	Production server	Run Flask app in production mode	5000

Security Best Practices

It is the intention to use rootless containers to reduce the attack surface by running containers without root privileges.

• Image Security: Scan images for vulnerabilities using tools like Trivy or Docker Scout. Use trusted base images and minimize layers to reduce potential attack vectors.
• Secrets Management: Handle sensitive data (e.g., database passwords) using Docker secrets or environment variables. Avoid hardcoding secrets in Dockerfiles or Compose files.
• Network Security: Expose only necessary ports, use internal networks for service communication, and avoid running containers in privileged mode.

Networking and Service Communication

Services communicate via Docker's default network or custom networks defined in docker-compose.yml.

• Internal Communication: Services can reach each other using service names as hostnames (e.g., backend connects to dengue_db via dengue_db:3306).
• Port Mappings: External ports are mapped as listed in the services table. Internal ports are used for inter-service communication.
• DNS Resolution: Docker Compose provides automatic DNS resolution for service names within the network.

Volumes and Data Persistence

• Database Volumes: The dengue_db service uses named volumes to persist data across container restarts. Ensure volumes are backed up regularly.
• Backup/Restore: Use docker exec to run mysqldump for backups: docker exec dengue_db mysqldump -u root -p dengue > backup.sql. Restore with docker exec -i dengue_db mysql -u root -p dengue < backup.sql.
• Development Mounting: For hot-reloading, mount source code volumes in development stages.

Volume Information

Volume Name	Type	Purpose	Services Using It
dbdata	Named	Persists MariaDB database data	dengue_db
pnpm-store	Named	Caches pnpm dependencies for faster builds	frontend-lint, frontend-test, frontend-cypress, frontend
node_modules	Named	Stores Node.js dependencies	frontend-lint, frontend-test, frontend
reports	Named	Stores test reports and coverage data	frontend-test, frontend-cypress, backend-test
./frontend:/app	Bind Mount	Mounts frontend source code for development	frontend-lint, frontend-test, frontend
./backend/app:/app	Bind Mount	Mounts backend source code for development	backend-lint, backend-test, backend, backend-e2e
.env:/app/.env	Bind Mount	Mounts environment file	frontend-cypress, backend-lint, backend-test, backend, backend-e2e
./frontend/cypress:/app/cypress	Bind Mount	Mounts Cypress test files	frontend-cypress
./frontend/cypress/cypress.config.ts:/app/cypress/cypress.config.ts	Bind Mount	Mounts Cypress config	frontend-cypress
./frontend/cypress/videos:/app/cypress/videos	Bind Mount	Stores Cypress test videos	frontend-cypress
./frontend/cypress/screenshots:/app/cypress/screenshots	Bind Mount	Stores Cypress test screenshots	frontend-cypress

Environment Configuration

• Environment Variables: Configure services using .env files or command-line overrides. For example, set database credentials via DB_PASSWORD in a .env file.
• Profile-Specific Config: Different profiles (development, testing, production) can load different environment files.

Troubleshooting and Debugging

• Common Issues:
  • Build failures: Check for missing dependencies or cache issues. Clear cache with docker builder prune.
  • Port conflicts: Ensure ports are not in use by other services. Use netstat or ss to check.
  • Database connections: Verify network connectivity with docker exec backend ping dengue_db.
• Logs and Inspection: View logs with docker compose logs <service>. Inspect containers with docker inspect <container>.
• Resource Monitoring: Use docker stats to monitor CPU/memory usage. Attach to containers with docker exec -it <container> /bin/bash for debugging.
• Health Checks: Services include health checks to ensure readiness (e.g., database connectivity).

CI/CD and Deployment Integration

• Kubernetes Integration: Docker images are deployed to Kubernetes clusters as defined in the k8s/ directory. Use kubectl to manage deployments.
• Image Building and Pushing: Build multi-architecture images and push to registries like GitLab Container Registry using docker buildx.
• Automated Testing: Run Compose profiles in CI pipelines to replicate the testing environment. Cache layers to speed up builds.

Performance and Optimization

• Resource Limits: Set CPU and memory limits in docker-compose.yml (e.g., deploy.resources.limits.memory: 512M).
• Health Checks: Define health checks in services to ensure containers are healthy before routing traffic.
• Image Optimization: Use multi-stage builds to reduce image size. Employ .dockerignore to exclude unnecessary files. Leverage caching for dependencies.

Maintenance and Updates

• Dependency Updates: After updating requirements.txt or package.json, rebuild images with docker compose build --no-cache.
• Container Lifecycle: Stop services with docker compose down. Clean up with docker system prune to remove unused resources.
• Version Pinning: Pin base image versions (e.g., python:3.13-slim) and package hashes for reproducible builds.

Kubernetes Infrastructure

Table of Contents

• Architecture Overview
• Directory Structure
• Components
• Deployment Guide
• Environment Configuration
• Network Policies
• Troubleshooting

Architecture Overview

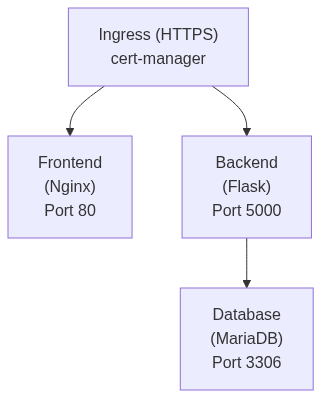

The Dengue Dashboard is a three-tier web application consisting of:

• Frontend: React/Vite application served by Nginx (port 80)
• Backend: Flask API application (port 5000)
• Database: MariaDB database (port 3306)

All services are exposed through an Nginx Ingress Controller with automatic TLS certificate management via cert-manager.

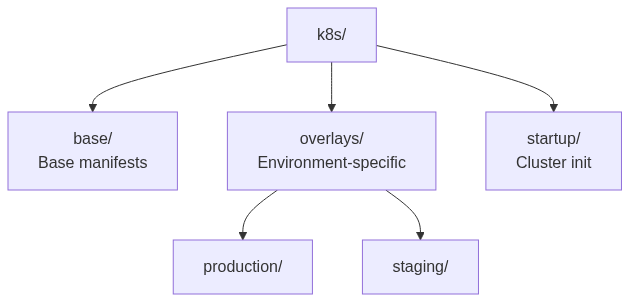

Directory Structure

Components

Base Resources

Component	Service	Replicas	Image	Resources	Notes
Backend (backend.yml)	ClusterIP service exposing the Flask API on port 5000	2	GitLab container registry (tag overridden per environment)	Requests: 128Mi RAM, 100m CPU; Limits: 512Mi RAM, 500m CPU	Pulls from regcred for private registry access
Frontend (frontend.yml)	ClusterIP service exposing the Nginx server on port 80	2	GitLab container registry (tag overridden per environment)	Requests: 64Mi RAM, 50m CPU; Limits: 312Mi RAM, 300m CPU
Database (database.yml)	ClusterIP service exposing MariaDB on port 3306	1 (single instance)	mariadb:lts	Requests: 256Mi RAM, 250m CPU; Limits: 312Mi RAM, 300m CPU	EmptyDir volume (⚠️ non-persistent)

Health Checks

Component	Health Checks
Backend (backend.yml)	Readiness probe on / (10s delay, 10s interval); Liveness probe on / (30s delay, 20s interval)
Frontend (frontend.yml)	Readiness probe on / (3s delay, 10s interval); Liveness probe on / (10s delay, 20s interval)
Database (database.yml)	TCP socket probes on port 3306

⚠️ Note: These are the current resources being used, changes may apply in the future.

4. Ingress (ingress.yml)

Configures external access to the application:

• TLS: Automatic certificate provisioning via cert-manager (Let's Encrypt)
• Force HTTPS: Redirects HTTP to HTTPS
• Routing:
  • /(.*) → Frontend service (port 80)
  • /api/?(.*) → Backend service (port 5000)
• Host: Configured per environment via overlays

5. Network Policies (network-policies.yml)

Implements zero-trust network security:

Policy	Name	Ingress	Egress
Database Policy	dengue-db-netpol	Only accepts connections from backend pods on port 3306	Only DNS queries to kube-system
Backend Policy	dengue-backend-netpol	Only accepts connections from ingress-nginx on port 5000	DNS queries to kube-system; Database connections on port 3306; (Optional) External SMTP on ports 25/587/465
Frontend Policy	dengue-frontend-netpol	Only accepts connections from ingress-nginx on port 80	Only DNS queries to kube-system
Default Deny All	default-deny-all	N/A	Denies all traffic not explicitly allowed by other policies

Configuration Management

Configuration is managed through Kustomize with a base + overlays pattern:

• Base: Contains common configuration in .env files
• Overlays: Environment-specific values that override base settings

The kustomization.yaml files use configMapGenerator to create ConfigMaps from .env files.

Kubernetes Deployment Guide

Prerequisites

1. Kubernetes cluster (v1.19+)
2. kubectl configured with cluster access
3. kustomize (built into kubectl 1.14+)
4. cert-manager installed for TLS certificates
5. Nginx Ingress Controller installed

Initial Cluster Setup

Run these commands once when setting up a new cluster:

# Apply cluster-wide resources (cert-manager, namespaces, RBAC)
kubectl apply -k k8s/startup/

This creates:

• Let's Encrypt cluster issuer
• Namespaces for staging and production
• Service accounts for image pulling and GitLab agents
• RBAC permissions

Deploy to Staging

# Deploy staging environment
kubectl apply -k k8s/overlays/staging/

# Verify deployment
kubectl get pods -n dengue-dashboard-staging
kubectl get ingress -n dengue-dashboard-staging

Deploy to Production

# Deploy production environment
kubectl apply -k k8s/overlays/production/

# Verify deployment
kubectl get pods -n dengue-dashboard-prod
kubectl get ingress -n dengue-dashboard-prod

Environment Configuration

Base Configuration (.env)

Located in k8s/base/.env, these values are shared across all environments:

PORT=5000
FLASK_APP=app:app
PYTHONUNBUFFERED=1
DB_HOST=dengue-db
DB_PORT=3306
DB_TYPE=mysql+pymysql
MAIL_SERVER=smtp
MAIL_PORT=25
MAIL_USE_TLS=false
MAIL_USE_SSL=false

Environment-Specific Configuration

Each overlay directory contains an .env file with environment-specific overrides:

Staging (k8s/overlays/staging/.env):

ENV=staging
DB_NAME=dengue_staging
VITE_API_BASE_URL=https://staging.example.com/api
ALLOWED_ORIGINS=https://staging.example.com

Production (k8s/overlays/production/.env):

ENV=production
DB_NAME=dengue_production
VITE_API_BASE_URL=https://dengue.example.com/api
ALLOWED_ORIGINS=https://dengue.example.com

Secrets

Sensitive values (database passwords, API keys) should be stored in Kubernetes Secrets:

# Create secret manually
kubectl create secret generic dengue-env \
  --from-literal=MARIADB_ROOT_PASSWORD=your-root-password \
  --from-literal=MARIADB_USER=dengue_user \
  --from-literal=MARIADB_PASSWORD=your-db-password \
  -n dengue-dashboard-staging

# Or create from file
kubectl create secret generic dengue-env \
  --from-env-file=secrets.env \
  -n dengue-dashboard-staging

Required secret keys:

• MARIADB_ROOT_PASSWORD: MariaDB root password
• MARIADB_USER: Application database user
• MARIADB_PASSWORD: Application database password

Image Registry Credentials

For pulling images from private GitLab registry:

kubectl create secret docker-registry regcred \
  --docker-server=registry.gitlab.com \
  --docker-username=<gitlab-username> \
  --docker-password=<gitlab-token> \
  --docker-email=<email> \
  -n dengue-dashboard-staging

Network Policies

The application uses Kubernetes Network Policies to implement microsegmentation:

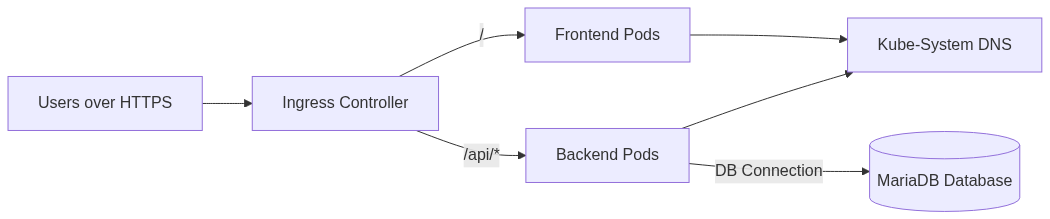

Traffic Flow

Default Deny

A default deny policy blocks all traffic not explicitly allowed. This ensures:

• No pod-to-pod communication unless permitted
• No egress to external networks unless permitted
• No ingress from outside the cluster unless through ingress controller

Enabling External SMTP

If the backend needs to send emails to external SMTP servers, uncomment the SMTP egress rules in network-policies.yml:

# In backend egress section
- to:
    - namespaceSelector: {}
  ports:
    - protocol: TCP
      port: 25
    - protocol: TCP
      port: 587
    - protocol: TCP
      port: 465

Common Tasks

Scale Deployments

# Scale backend to 3 replicas
kubectl scale deployment dengue-backend --replicas=3 -n dengue-dashboard-staging

# Scale frontend to 1 replica
kubectl scale deployment dengue-frontend --replicas=1 -n dengue-dashboard-staging

Update Configuration

# Edit .env file in appropriate overlay
vim k8s/overlays/staging/.env

# Apply changes
kubectl apply -k k8s/overlays/staging/

# Restart deployments to pick up new config
kubectl rollout restart deployment/dengue-backend -n dengue-dashboard-staging
kubectl rollout restart deployment/dengue-frontend -n dengue-dashboard-staging

View Configuration

# View current ConfigMap
kubectl get configmap dengue-config -n dengue-dashboard-staging -o yaml

# View environment variables in a pod
kubectl exec <pod-name> -n dengue-dashboard-staging -- env

Rollback Deployment

# View rollout history
kubectl rollout history deployment/dengue-backend -n dengue-dashboard-staging

# Rollback to previous version
kubectl rollout undo deployment/dengue-backend -n dengue-dashboard-staging

# Rollback to specific revision
kubectl rollout undo deployment/dengue-backend --to-revision=2 -n dengue-dashboard-staging

CI/CD Integration

Staging and Production deployments are automated in the pipeline

Development Workflow

Running Specific Services

If you only want to run specific services, append the service name to the docker compose command:

# Run only the frontend
docker compose up --build frontend

# Run only the backend
docker compose up --build backend

# Run backend with linting
docker compose up --build backend-lint

Stopping the Application

To stop all running services:

docker compose down

To stop and remove all data (including the database):

docker compose down -v

Viewing Logs

To view logs for all services:

docker compose logs -f

To view logs for a specific service:

docker compose logs -f backend
docker compose logs -f frontend

Rebuilding After Changes

If you make changes to dependencies or Docker configuration, rebuild the containers:

docker compose up --build

For code changes in the frontend/src or backend/app directories, the changes should be reflected automatically due to volume mounts (hot reload).

Testing

Backend Tests

Run backend tests:

docker compose exec backend pytest

Frontend Tests

Run frontend unit tests:

docker compose exec frontend npm run test:unit

Run Cypress end-to-end tests:

docker compose exec frontend npm run cypress:open

Troubleshooting

Common Issues

Port Already in Use If you get an error that a port is already in use, you can either:

• Stop the conflicting service
• Change the port mapping in docker-compose.yml

Database Connection Issues

• Ensure the database container is healthy: docker compose ps
• Check database logs: docker compose logs db
• Verify environment variables in .env match the database credentials

Frontend Not Loading

• Check that the frontend container is running: docker compose ps
• Verify the VITE_API_BASE_URL in .env is set correctly
• Check frontend logs: docker compose logs frontend

Permission Issues (Linux/WSL) If you encounter permission issues with volumes:

sudo chown -R $USER:$USER .

Resetting the Database

To reset the database to a clean state:

docker compose down -v
docker compose up --build

Clean Installation

For a completely fresh installation:

docker compose down -v
docker system prune -a
copy .env.example .env
docker compose up --build

Contributing

1. Create a feature branch from development
2. Make your changes
3. Test your changes locally
4. Submit a merge request

License

See the LICENSE file for details.

Support

For issues and questions, please create an issue in the GitLab repository.
